Tiny Tractor Build

bbuckler

Tractorologist
Member
I don't where to post this but I got to thinking about a tiny tractor build. I got a little 3hp briggs and the steel but finding the little live axle and maybe tiller wheels might be hard.

video quality isn't good because it was taken from my phone

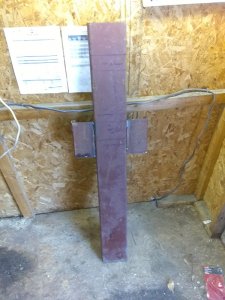

Added some footrest today and I found some walkbehind mower wheels for the back of it.


Attachments

  • 51623674_2223637714354005_5371365737661202432_n.jpg
    84.1 KB · Views: 5
I think my best option for the axle is the 3/4 x 36 and cut it down to size. I hope one of these days to have a shop with a mill and lathe and make parts in house. 3/4

Might try McMaster-Carr for new gears. They show all sorts of bevel gears. Or maybe a bigger old right angle grinder, it might have some gears you could use

I got to pick up some welding wire and a chop saw blade but I'm going to try to build on this some more tomorrow or Friday

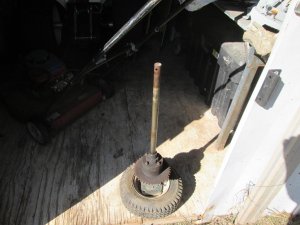

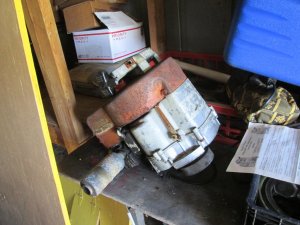

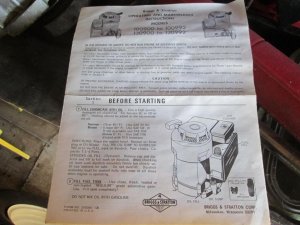

Don't know when the next time I'll be by, but you are welcome to come up and pick these up.


Attachments

  • 10.jpg
    83.4 KB · Views: 8
  • 11.jpg
    100.5 KB · Views: 8
  • 12.jpg
    104.8 KB · Views: 8
Don't know when the next time I'll be by, but you are welcome to come up and pick these up.
I will try to make it over sometime in the next few weeks. Right now I'm running back and forth between my shop and my buddy's shop in Troy working on the farmall cub

I've been following a guy doing some electric conversions on a go kart. He has that thing flying.

Bought motor and parts of one of those import sites.

That motor you linked from amazon is 1.3hp. Be perfect for a slow moving tiny tractor.
