Troybilt Horse?

[KennyP]

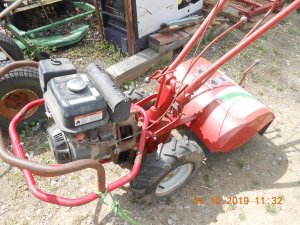

Got one to look into. Seem to have stripped a few teeth in the tiller. How hard to fix and where to find parts is what I need.



[Ky wil]

You can usually find about anything on eBay. There a bronze gear that drives the tines I would guess that's the problem. I watched the scrap yards for a while and finally got all the parts to build one, if time isn't a issue that will save you some money that way.



[KennyP]

You can usually find about anything on eBay. There a bronze gear that drives the tines I would guess that's the problem. I watched the scrap yards for a while and finally got all the parts to build one, if time isn't a issue that will save you some money that way.

This is not mine. Guy wants it back soon, fixed or not.
Looks like it's a model 680, may be the 'dog clutch' at the back of the main trans.



[KennyP]

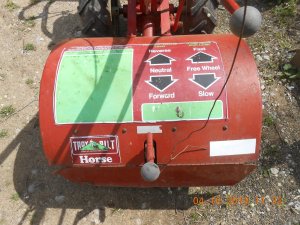

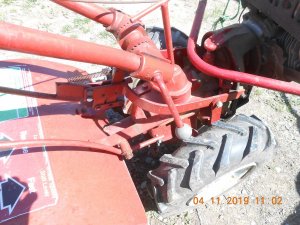

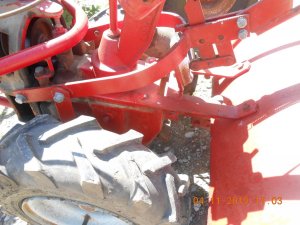

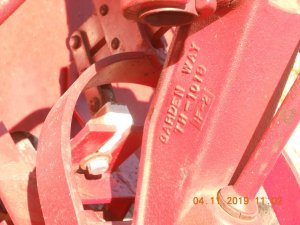

I got a few more pics and what I believe are the #'s off it. At the back of the gear housing cover is (best I can make out);

H 1003

81-25

Serial (above RH axle) is 57398.



[KennyP]

Well, this is a dead horse! Too many NLA parts for it!



[earthgrinder]

I got a few more pics and what I believe are the #'s off it. At the back of the gear housing cover is (best I can make out);

H 1003

81-25

Serial (above RH axle) is 57398.
View attachment 12252 View attachment 12253 View attachment 12254

Probably April 1973 if that number was from the right top of the transmission case next to the right wheel. No tiller clutch in that year.



[earthgrinder]

Gear is available for $91 plus shipping.
Custom Parts, Inc.



[KennyP]

I'll contact the owner and see what he says! Thanks for finding that!



[chieffan]

Didn't MTD buy out Troy Built?



[KennyP]

I believe so!



[alleyyooper]

Yes MTD bought out Troy built and you can buy a new horse size today.

they also make one under their own MTD Name so at Do It Best Hardwares. That Bronze gear is most likely the same.

OEM Troy-Bilt Horse Tiller Drive Shaft Gear Kit 11527 GW-11527 for sale online | eBay

Al



[KennyP]

Yes MTD bought out Troy built and you can buy a new horse size today.

they also make one under their own MTD Name so at Do It Best Hardwares. That Bronze gear is most likely the same.

OEM Troy-Bilt Horse Tiller Drive Shaft Gear Kit 11527 GW-11527 for sale online | eBay

Al

None of that showed up when I searched for parts for the one above.



[earthgrinder]

Didn't MTD buy out Troy Built?

Yes, in 2001.
